Taguchi Robust Design

What is Taguchi Robust Design?

Taguchi Robust Design (Taguchi Methods, or Robust Parameter Design) is a designed-experiment technique used to find factor settings that produce a consistent, on-target response despite uncontrollable variation (noise). It uses standard orthogonal arrays to study several control factors efficiently, and Signal-to-Noise (S/N) ratios to identify settings that are both on-target and insensitive to noise.
In Zometric, the Taguchi Robust Design tool generates a run matrix from a standard orthogonal array (L4, L8, L9, L12, L16, L18, or L27) based on the number of control factors and levels you specify, optionally crossing it with an outer array of noise factors, then computes S/N ratios, response tables, ANOVA, and the optimal factor-level combination from your entered results.

When to use Taguchi Robust Design?

Data Requirements

• The dataset must include one control factor per settable input, each with 2, 3, or a mix of levels supported by a standard orthogonal array.
• Noise factors (uncontrollable conditions such as humidity, operator, or raw-material lot) can optionally be included as an outer array to explicitly test robustness.
• The response variable must be continuous and measured at least once per run; more replicates or noise conditions improve the precision of the S/N ratio estimate.

Data Collection Guidelines

• Randomize run order where practical, to avoid confounding factor effects with time-based drift.
• Record every replicate or noise-condition result for a run rather than just an average — the S/N ratio calculation needs the individual values.
• Keep factor levels realistic and evenly spaced across the operating range you actually care about.
• Avoid changing anything beyond the intended factors between runs; uncontrolled changes will inflate the error term.

Model Fit

• Review the ANOVA % Contribution column to confirm which factors are genuinely driving the response versus noise/error.
• Compare the S/N ratio Delta/Rank and the Means Delta/Rank — if they disagree substantially, investigate before committing to the optimal settings.
• A near-zero Error term (very few degrees of freedom left) means the design is saturated; treat significance tests cautiously and consider replicating the study.

Guidelines for correct usage of Taguchi Robust Design

• Use a continuous, measurable response; the S/N ratio calculation requires numeric replicate/noise values, not categorical outcomes.
• Choose the Signal-to-Noise ratio type that matches your goal: Larger-is-better for maximizing, Smaller-is-better for minimizing, Nominal-is-best for hitting a fixed target with minimum variation.
• Include noise factors (a full inner × outer crossed array) whenever the product or process must perform consistently across real-world variation, not just at nominal conditions.
• Let the tool auto-select the smallest orthogonal array that can host your factors, unless you already have a specific array validated for your process.
• Randomize the run order to protect against time-based or environmental drift confounding the factor effects.
• Review the ANOVA percent contribution and Delta/Rank before acting on the “optimal settings” — a factor with a tiny delta is not worth changing in production.
• If interactions between control factors are expected and important, note that standard orthogonal arrays are built to estimate main effects efficiently and may confound some interactions; consider Response Surface Design if interactions must be estimated cleanly.

Alternatives: When not to use Taguchi Robust Design

• If you need to build a predictive quadratic model of a curved response surface (not just find the best combination from a discrete set of levels), use Response Surface Design instead.
• If your factors interact strongly and estimating those interactions precisely matters, use Create & Analyse Factorial DoE, which resolves interactions explicitly rather than confounding them.
• If you are combining ingredients whose proportions must sum to a fixed total, use Create & Analyse Mixture DoE instead.
• If you already have a fitted regression model and only need to find the best input settings to hit or optimize a response, use Response Optimizer.
• If you simply want to screen many factors quickly to find which ones matter at all, use Create Definitive Screening / Analyse Screening Design.

Example of Taguchi Robust Design?

A process engineer wants injection-molded parts to hit a target wall thickness of 2.00 mm consistently, regardless of variation in ambient humidity (a noise factor the plant cannot control). Three control factors are available — Barrel Temperature, Injection Pressure, and Cooling Time — each tested at 2 levels. The engineer crosses these control factors (an L4 inner array) with Humidity tested at 2 levels (an outer array), producing a full crossed design, and measures wall thickness for every trial. Since the goal is to hit 2.00 mm exactly with minimum variation, Nominal-is-Best S/N ratio is used. The following steps were taken:

• Gathered the necessary data.
• Analysed the data with the help of https://statsai.zometric.com/.
• To find Taguchi Robust Design choose https://statsai.zometric.com/ > Statistical module > DOE > Create & Analyse Taguchi Robust Design.

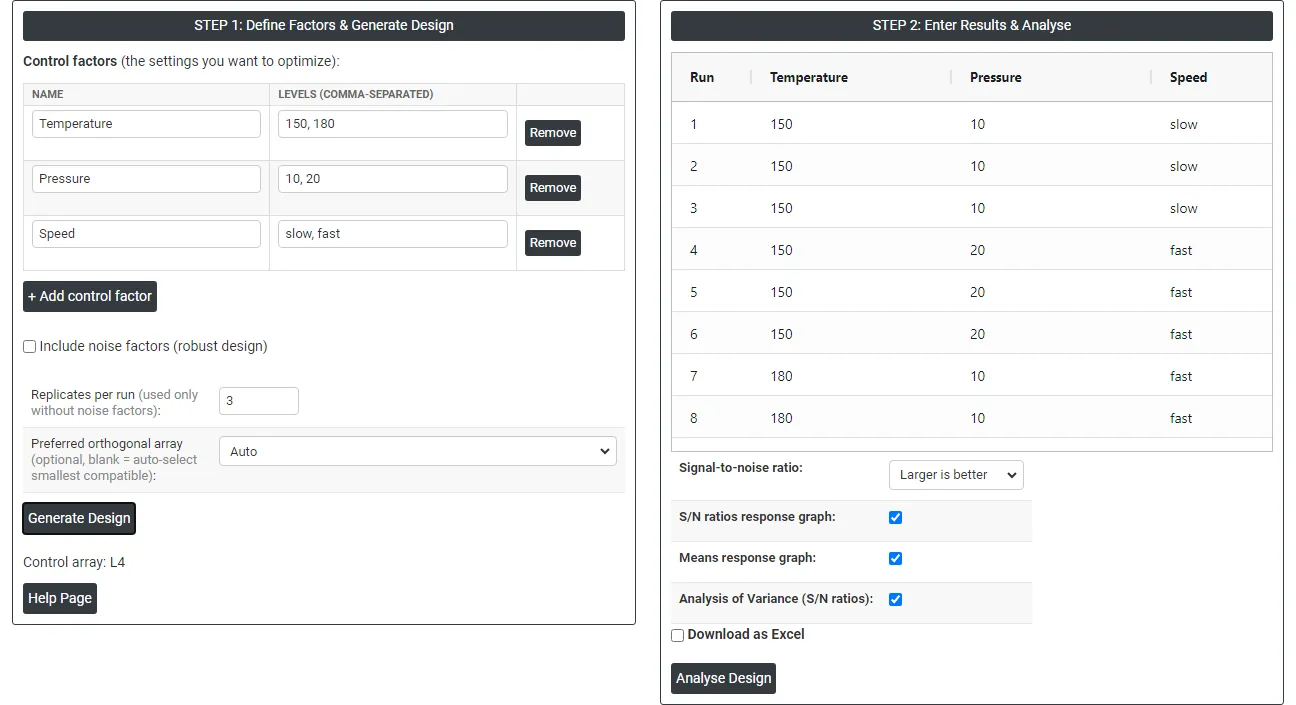

• Inside the tool, fed the data along with the S/N ratio type and other options as follows:

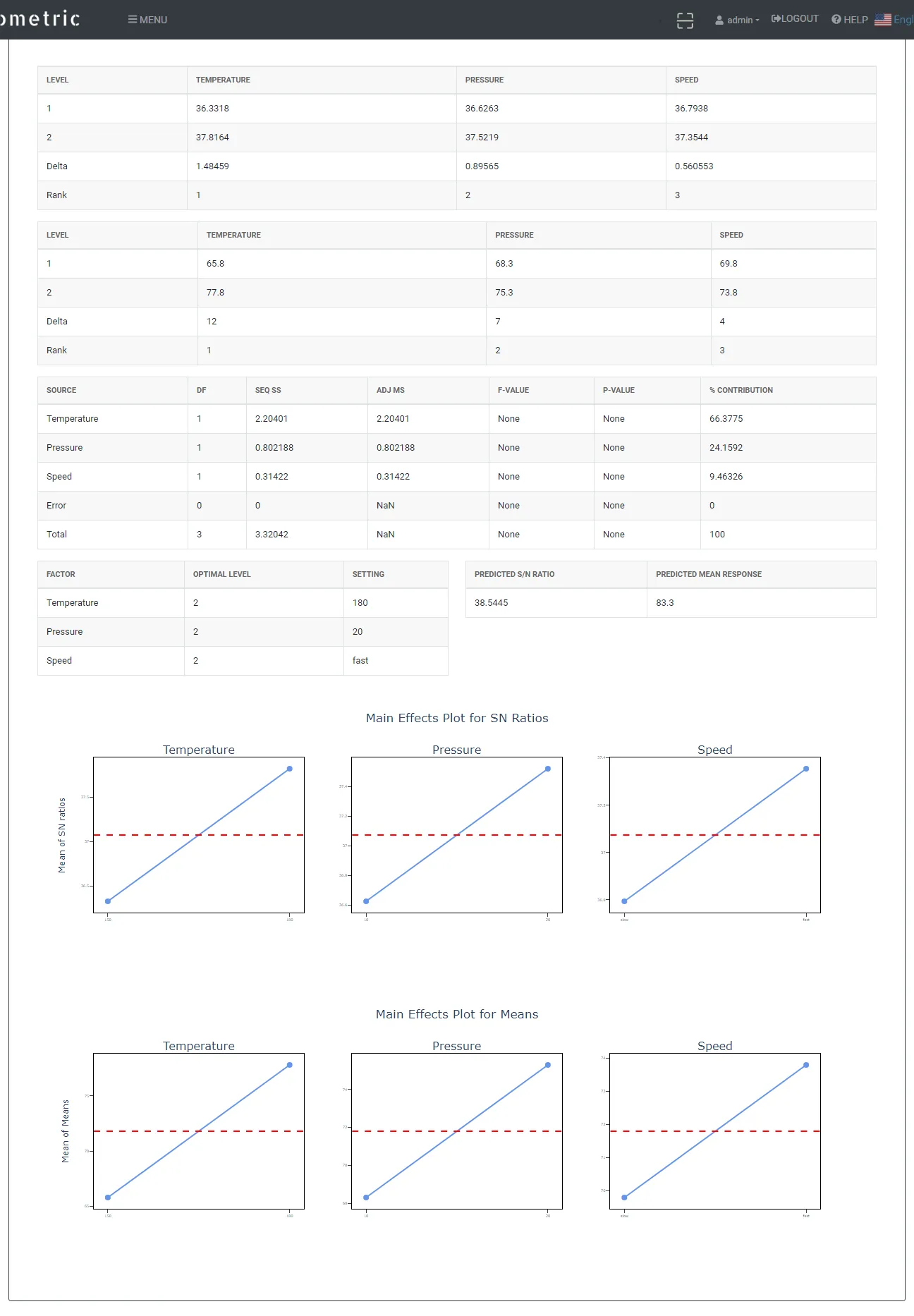

• After using the above mentioned tool, fetched the output as follows:

How to do Taguchi Robust Design

The guide is as follows:

• Login in to Stats AI account with the help of ​https://statsai.zometric.com/​
• On the home page, choose Statistical Tool > DOE > Create & Analyse Taguchi Robust Design.
• Define your control factors (name and comma-separated levels), and optionally check “Include noise factors” to define an outer array.
• Click Generate Design — the tool auto-selects the smallest orthogonal array that fits your factors, or uses your preferred array if you specify one.
• Enter your measured Result(s) into the generated run matrix, choose analysis options, and click Analyse Design to get your results.

On the dashboard of Taguchi Robust Design, the window is separated into two parts.

On the left part, STEP 1: Define Factors & Generate Design is present. Here you define each control factor's name and levels, and — if the process must be robust to real-world variation — the noise factors to cross against them.

• Control factors: The settings you want to optimize (e.g. Temperature, Pressure). Enter a name and comma-separated levels for each (2, 3, or a mix, as supported by the standard orthogonal arrays).
• Include noise factors: Enable this to define uncontrollable conditions (e.g. Humidity) that the design should be tested against via a crossed outer array, instead of simple replicates.
• Replicates per run: Used only when noise factors are not included — repeats each run this many times so the S/N ratio can be computed from genuine repeat measurements.
• Preferred orthogonal array: Optional. Leave as Auto to let the tool pick the smallest array that can host your factors, or specify one (e.g. L9) if you need a particular array.

On the right part, STEP 2: Enter Results & Analyse is present, along with the following options:

• Signal-to-noise ratio: Larger is better (for maximizing the response), Smaller is better (for minimizing it), or Nominal is best (for hitting a fixed target with minimum variation).
• S/N ratios response graph: Shows the mean S/N ratio at each level of every control factor, to visually identify which levels are best.
• Means response graph: Shows the mean raw response at each level of every control factor.
• Analysis of Variance (S/N ratios): Reports each factor's degrees of freedom, sum of squares, F-value, p-value, and percent contribution, to judge statistical and practical significance.
• Download as Excel: Exports the design, results, response tables, ANOVA, and optimal settings to an Excel workbook.
