Bioassay - Four-Parameter Logistic Method

What is Bioassay — Four-Parameter Logistic Method?

The Four-Parameter Logistic (4PL) Method is a statistical procedure used to estimate relative potency from bioassays whose dose-response relationship follows a full sigmoidal (S-shaped) curve — for example, ELISA and other immunoassays — rather than only the linear middle portion of the curve used by the Parallel Line Method.

The 4PL model describes the response as y = D + (A − D) / (1 + (x/C)^B), where A and D are the lower and upper asymptotes of the curve, B is the Hill slope (steepness), and C is the EC50 (the dose producing a response halfway between A and D). To estimate relative potency, the curve shape (A, B, D) is shared across the standard and test preparation(s), while each test preparation is given its own horizontal shift on the dose scale — this shift is the relative potency estimate directly, similar in spirit to the log-dose shift used in the Parallel Line Method, but applied to the entire sigmoid rather than just its linear section.

Validity is confirmed via three F-tests comparing nested models: whether the dose-response relationship is significant at all, whether the preparations share a common curve shape (parallelism), and whether the fitted 4PL curve adequately describes the data (lack of fit).

The Four-Parameter Logistic Method is widely used in immunoassay-based potency testing — for example, ELISA-based potency assays for biologics — in line with USP <111> and European Pharmacopoeia 5.3.

When to use Bioassay — Four-Parameter Logistic Method?

Use the Four-Parameter Logistic Method when the dose-response relationship is sigmoidal across the full tested range (with clear lower and upper plateaus), rather than linear over just the middle portion — this is typical of immunoassays such as ELISA, where the Parallel Line Method’s linearity assumption would not hold across the whole curve.

Guidelines for correct usage of Bioassay — Four-Parameter Logistic Method

• Use enough dose levels (ideally 6-8 or more) to properly define both asymptotes (plateaus) and the transition region of the curve
• Ensure the tested dose range extends far enough in both directions to approach the lower and upper asymptotes — without this, A and D cannot be reliably estimated
• Use adequate replicates per dose-preparation combination so the lack-of-fit test has power
• Always check the three validity tests — regression significance, parallelism, and lack of fit — before reporting a potency result
• If the parallelism test fails, review whether the test and standard preparations genuinely have the same curve shape before proceeding

Alternatives: When not to use Bioassay — Four-Parameter Logistic Method

If the dose-response relationship is only linear in log(dose) over the tested range (not a full sigmoid with two clear plateaus), use the Parallel Line Method instead — it requires less data and is simpler to validate. If the response is linear in dose itself, use the Slope Ratio Method. If the response is binary/quantal, use the Quantal Response Method.

Example of Bioassay — Four-Parameter Logistic Method?

An analyst at a biologics company runs an ELISA-based potency assay for a Standard and a Test preparation across 8 dose levels spanning the full sigmoidal response range, with 5 replicates per dose-preparation combination, and wants to estimate the Test preparation’s relative potency. The analyst follows these steps:

• Gathered the necessary data.

• Now analyses the data with the help of https://statsai.zometric.com/.
• To find Bioassay — Four-Parameter Logistic Method, choose intelliqs.zometric.com > Statistical module > Regression > Bioassay — Four-Parameter Logistic Method.
• Inside the tool, feeds the data along with other inputs as follows:

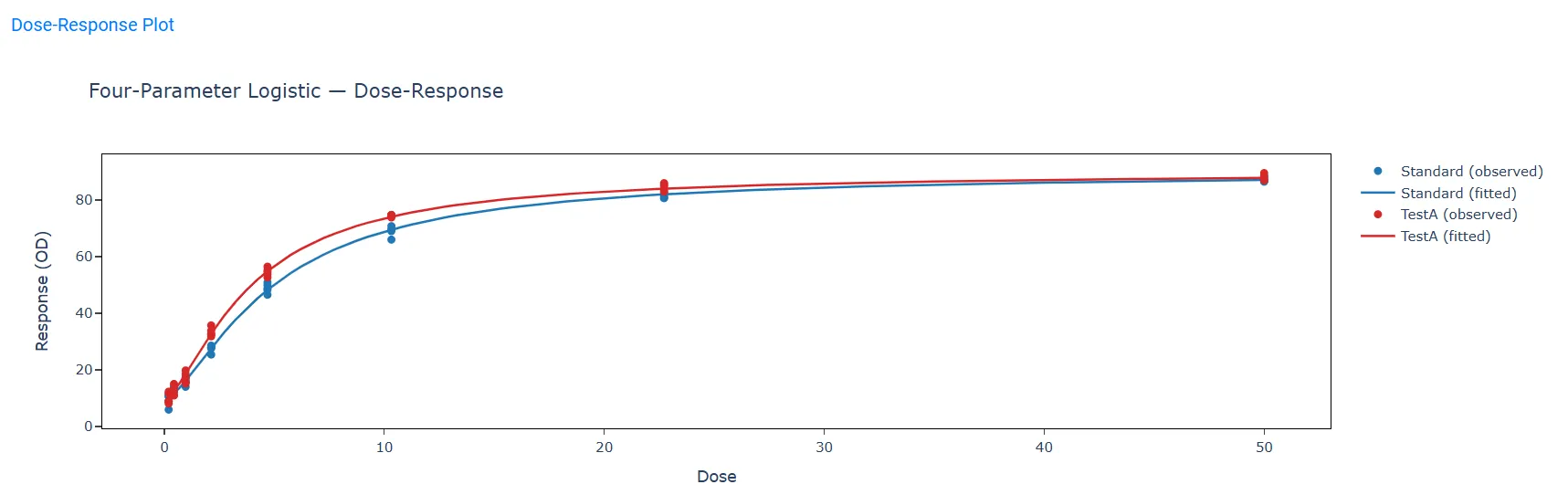

• After using the above mentioned tool, fetches the output as follows:

How to generate Bioassay — Four-Parameter Logistic Method?

The guide is as follows:

• Login in to Stats AI account with the help of https://statsai.zometric.com/
• On the home page, choose Statistical Tool > Regression > Bioassay — Four-Parameter Logistic Method.
• Click on Bioassay — Four-Parameter Logistic Method and will reach the dashboard.
• Next, update the data manually or can completely copy (Ctrl+C) the data from excel sheet and paste (Ctrl+V) it here.
• Next, you need to select the Response, Dose, and Preparation columns and enter the Standard preparation label.
• Finally, click on calculate at the bottom of the page and you will get desired results.

On the dashboard of Bioassay — Four-Parameter Logistic Method, the window is separated into two parts.

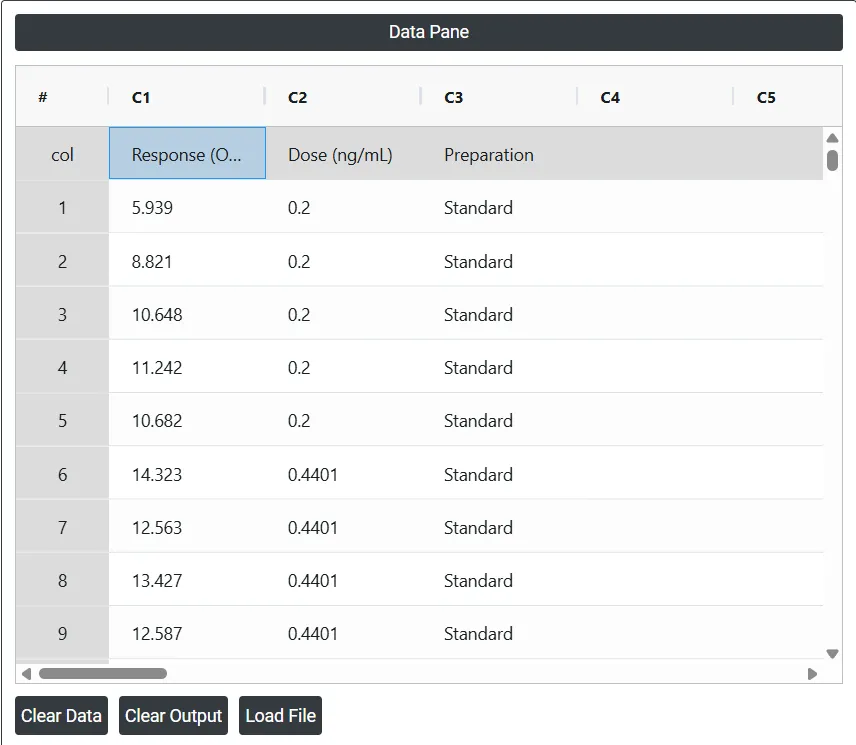

On the left part, Data Pane is present. Data can be fed manually or the one can completely copy (Ctrl+C) the data from excel sheet and paste (Ctrl+V) it here.

• Load example: Sample data will be loaded.
• Load File: It is used to directly load the excel data.

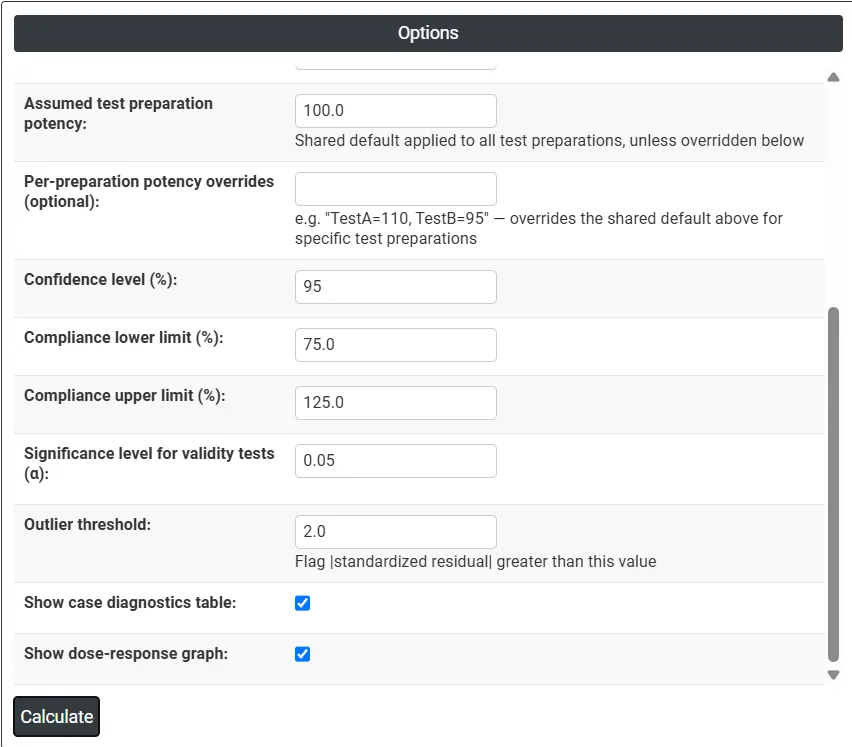

On the right part, there are many options present as follows:

• Response: The column containing the measured biological response.
• Dose: The column containing the dose or concentration administered. Values must be strictly positive.
• Preparation: The column identifying which preparation (Standard or Test) each observation belongs to.
• Standard preparation label: The exact text used in the Preparation column to identify the standard (e.g., "Standard").
• Assumed standard potency / Assumed test preparation potency: The nominal (labelled) potency of the standard and test preparation(s), used to convert the relative potency into absolute estimated potency.
• Confidence level: The confidence level (%) used for the potency confidence limits.
• Compliance lower limit / Compliance upper limit: The acceptable range (%) for the estimated relative potency, used to flag Pass/Fail compliance.
• Significance level for validity tests (α): The significance threshold used for the Regression, Parallelism, and Lack-of-Fit validity tests.
• Outlier threshold: The |standardized residual| value above which a case diagnostic row is flagged as an outlier.
• Show case diagnostics table / Show dose-response graph: Toggles to include or exclude these sections from the output.
• Download as Excel: This will display the result in an Excel format, which can be easily edited and reloaded for calculations using the load file option.
